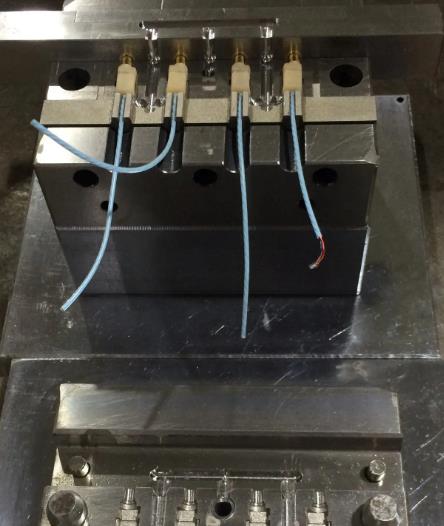

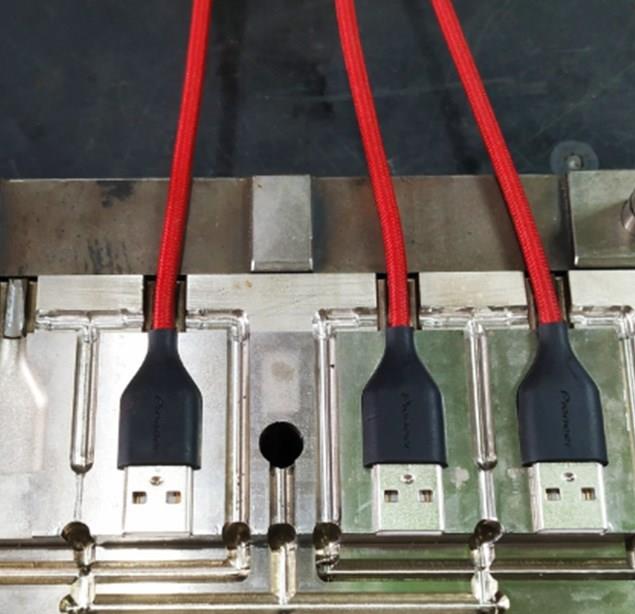

Why is the data cable plug mold hot?

The possible reasons for the heat of the data cable plug mold are as follows:

1. Too much current: If the current of the data cable plug exceeds the designed carrying capacity, resulting in too much current, it will produce heat. This can be caused by overuse or long periods of high load work. In this case, it is recommended to replace the plug that can withstand higher currents or reduce the use load.

2. Poor contact of conductive materials: poor contact between the power supply contact point or conductive material and the plug contact part in the mold will increase the resistance, resulting in greater power loss and heat when the current passes through. This can be caused by dirt, oxidation or loosening of the contact surface. The solution includes cleaning the contact surface, checking the contact and connecting it correctly.

3. Too thin wire: the cross section of the wire near the plug is too small, and the resistance when the current flows will increase, resulting in heating problems. This may be due to the selection of lower specification wires or improper design in the manufacturing process. In this case, it is recommended to replace high-quality wires that are more suitable for current requirements.

4. The ambient temperature is too high: the ambient temperature caused by the use environment or the use mode is too high, which will also cause the plug mold to generate heat. For example, in high temperature environments or direct exposure to sunlight, the plug will be affected by external heat and heat. At this time, you can consider providing appropriate heat dissipation measures near the plug, such as increasing the heat sink or carrying out effective ventilation heat dissipation.

To sum up, the heat of the data cable plug mold may be due to too much current, poor contact of conductive materials, too thin wires or too high ambient temperature. If you find the plug mold heating problem, please be sure to check and solve it in time to prevent excessive heat damage to the equipment or cause safety problems. It is recommended to seek the help of professional technicians in such cases to ensure correct fault diagnosis and implementation of solutions.
