What is the use of guide sleeve and guide pins in mold accessories?

With the rapid development of mold and other industries, the demand for guide pins and bushings for mold accessories is also increasing. According to relevant statistics, the proportion of guide column guide sleeve in mold import and export is as high as 45 ~ 73%. Therefore, in a variety of occasions, the guide column guide sleeve has been the same favor and praise, it can play a very important role in the mold, for the mold production has brought a better solution. Then do you know what the guide sleeve guide pins in the mold accessories is used for? The following three precision small series for you to introduce:

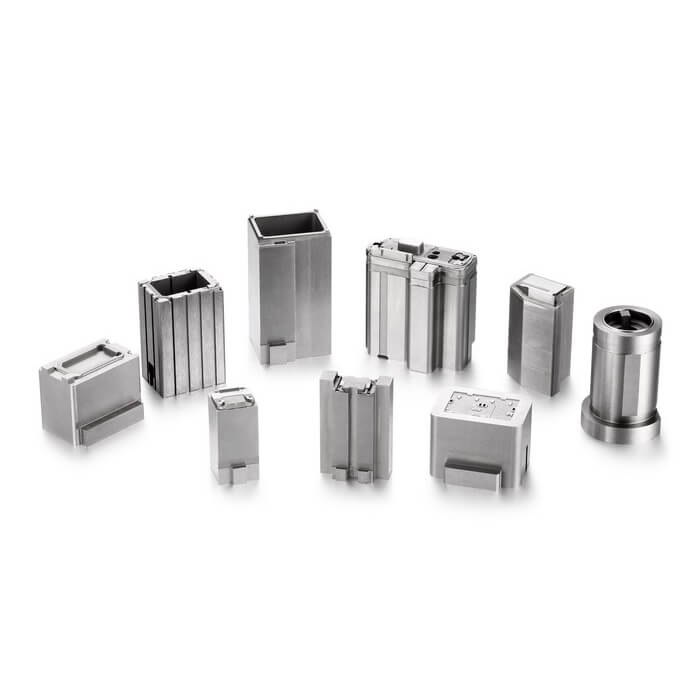

Guide pins and guide bush

The guide sleeve guide column in the mold accessories has the following functions:

1. Support

Support is another powerful function of the guide pins guide sleeve. In the complex and elegant mold production, in order to avoid such bad situations as the skew of the ejector plate during the ejector plate process, the guide column guide sleeve maintains the ejector plate activity to ensure normal operation and stable state during the ejector plate work. Obviously, supporting this major role not only supports the activities of the top publishing but also supports the operation of an industry, if the lack of such a critical role, you can imagine its danger.

2. Protection

Guide pins guide sleeve is a traditional and effective form of protection for machine tools. Its protective effect is effective in preventing the entry of chips and other sharp things, and the infiltration of coolant can be effectively reduced through certain structural measures and appropriate scraping plates. In this field, the guide pins and guide sleeve are effectively applied. The existence of the guide pins and guide sleeve adds a protective wall to the original problems of this industry, making it safer and more solid. I believe this is an indisputable fact in the eyes of the general public.

3. Orientation and positioning

In the mold production, the good quality guide column guide sleeve acts as an important element in this. Its mission in the production process is to guide and position. Moreover, in the process of dynamic mold and fixed mold, in order to make the mold appear fixed mold in place and the entire working process does not cause errors and failures due to some problems, fully ensuring the correct alignment is its mission. Such a process shows the guiding role of the guide column and guide sleeve in the mold. This is not only due to its guidance, but also the accurate positioning of the guide pins and guide sleeve.

In summary, we can see that, as an important accessory in the mold production process, the important role of the guide sleeve guide pins is to guide, support and positioning. It is precisely because the guide column guide sleeve has these easily ignored and indispensable roles, the entire mold industry can not be underestimated.
